DAS Web Client Demo Application

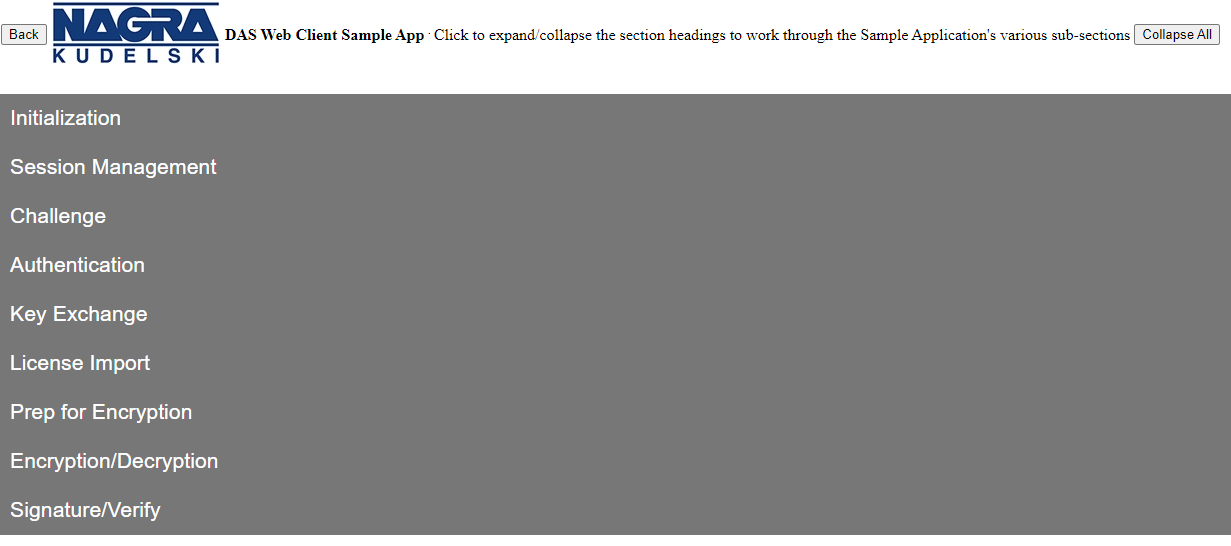

Point your browser to the demo application URL https://otvplayer.nagra.com/demo/dasc/web/release/5.3.0.1645020216/sample_application/ and load it.

Click the headings to expand and collapse the different sections to focus on the sections of relevance.

Initialization

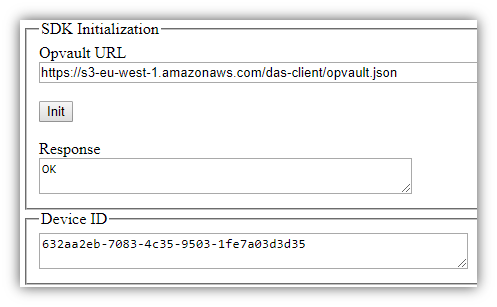

Enter the Opvault and click Init. This will call dasWebSDK::init() method and will return a deviceUniqueId if the SDK can be initialized correctly.

Click here to see the SDK Initialization and Device ID panels.

Session Management

To create a new Session, click Open Session. This is done by calling the dasWebSDK::openSession() method and will return a Session ID that can be used in subsequent operations.

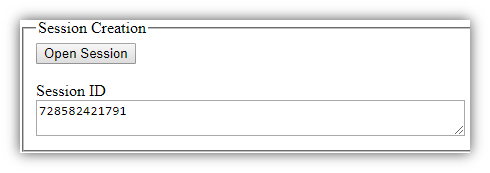

Click here to see the Session Creation panel.

Challenge

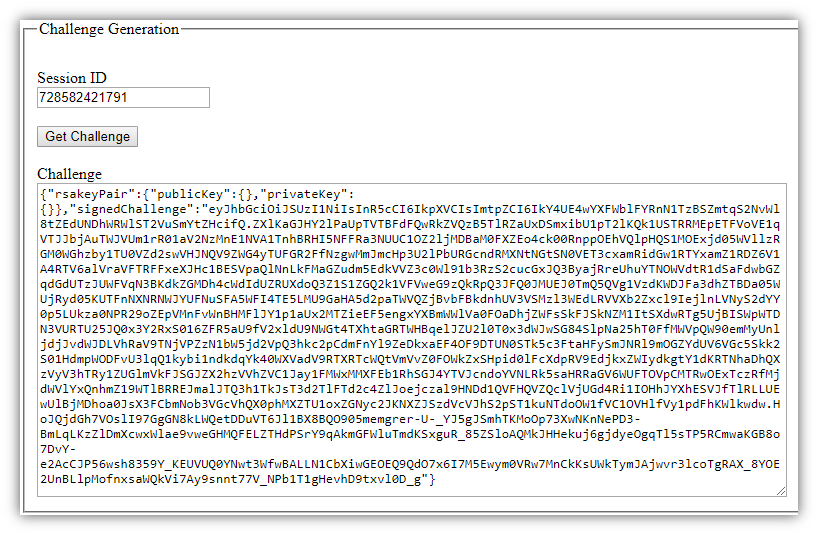

To get a Challenge that will be needed to securely communicate with the backend, use Session ID. This is done by calling the dasWebSDK::getChallenge() method.

Click here to see the Challenge Generation panel.

Authentication

You can now call the backend to authenticate the device. The exact backend URL is tenant-specific and will be provided by NAGRA.
An SSP Authorization is required to perform the request, the previously requested challenge is to be provided in the request.
The Authenticate call allows the backend to securely authenticate web-based clients, returning authenticating information to the calling device.

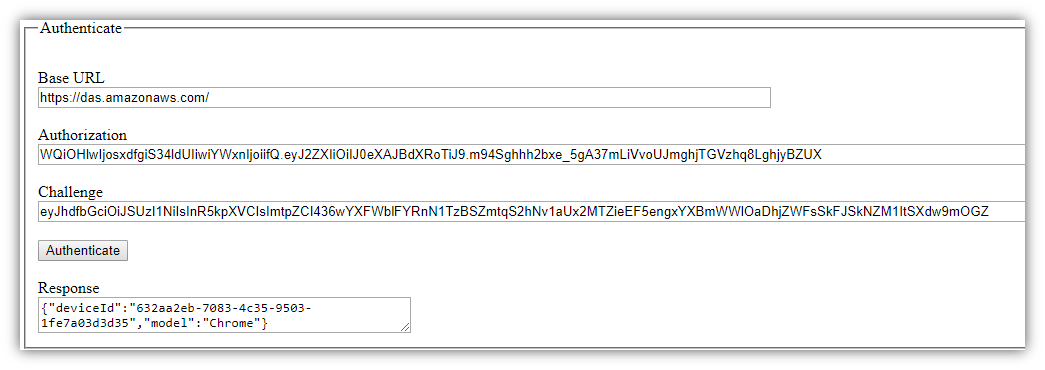

Click here to see the Authenticate panel.

Key Exchange

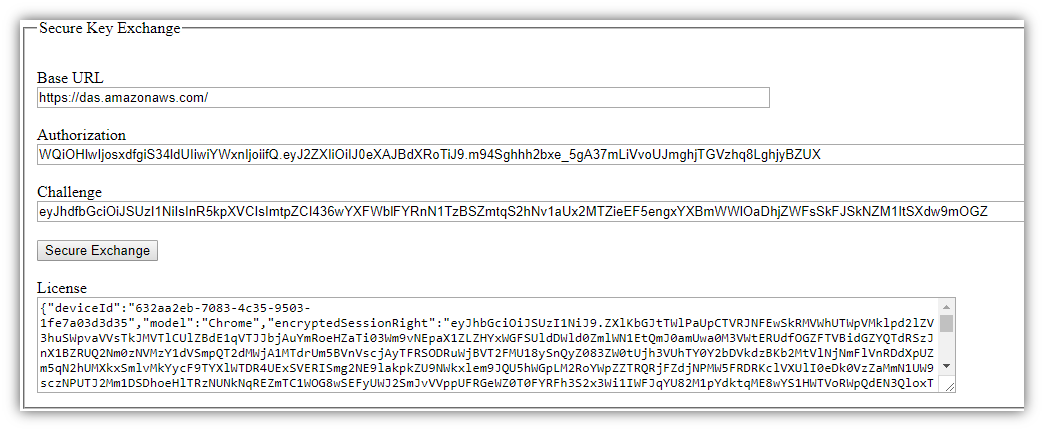

The Secure Key Exchange call provides a set of secure keys to be used by the web-client application on the device.

Click here to see the Secure Key Exchange panel.

License Import

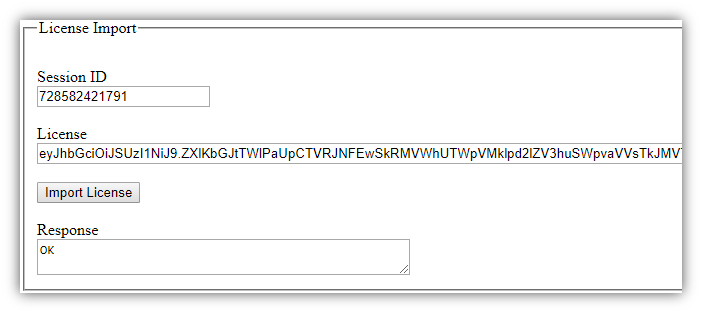

The license provided by calling Secure Key Exchange can be ingested via the dasWebSDK::importLicense() method.

Click here to see the License Import and Keys Retrieval panels.

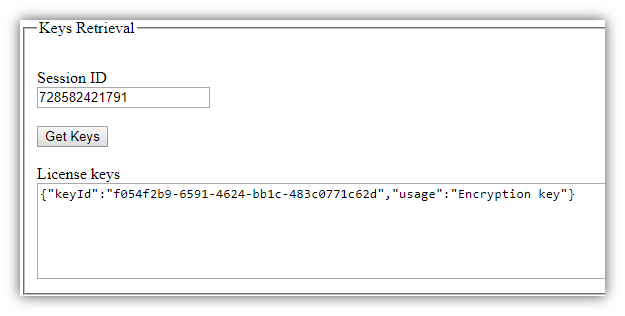

The keys related to any given session can be retrieved with dasWebSDK::getKeys() method. It returns a json object listing each keyId and its intended usage.

Prep for Encryption

The sample client application includes some code showing how an IV can be generated. This will be needed for the different crypto methods.

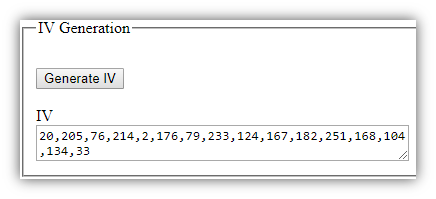

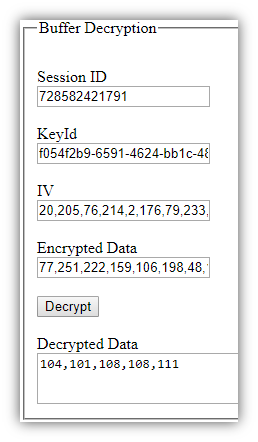

Click here to see the IV Generation and Buffer Decryption panels.

Some additional utility code to transform a string into a ByteArray, which is the data type crypto methods expect.

Encryption/Decryption

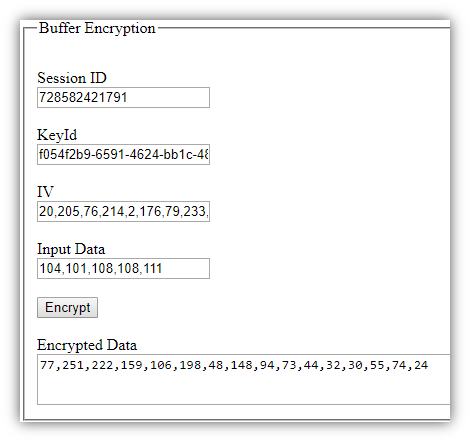

Click here to see the Buffer Encryption and Decryption panels

dasWebSDK::encrypt() allows to encrypt any ByteArray buffer using the specified keyId.

dasWebSDK::decrypt() allows to decrypt an encrypted ByteArray buffer using the specified keyId.

Signature/Verify

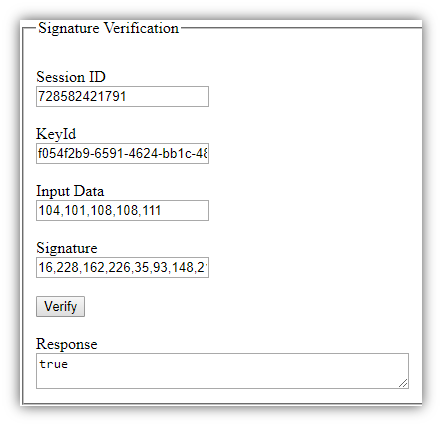

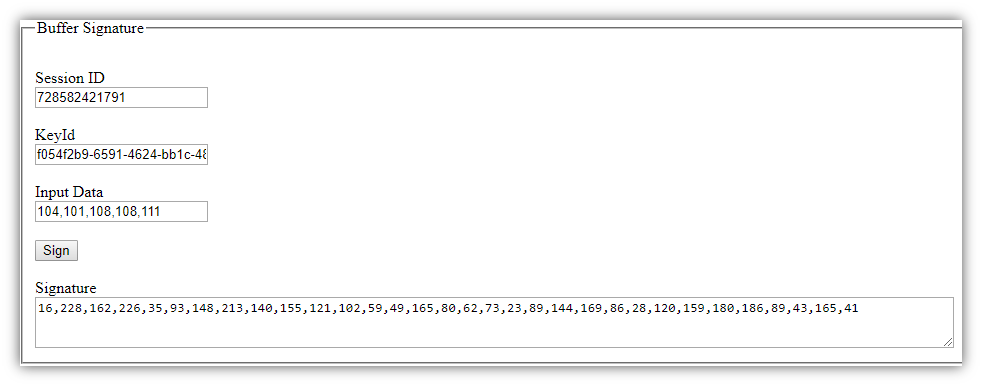

Click here to see the Buffer Signature and Signature Verification panels.

dasWebSDK::sign() will sign a ByteArray buffer using the specified keyId.

dasWebSDK::verify() will verify that the provided signature is consistent with a given ByteArray buffer and signing keyId.

Session Management

Click here to see the Session Clean-up panel.

dasWebSDK::closeSession() will clean up a Session from the SDK, removing all keys associated with it.
