Platform and Monitoring

1. Deployment Models

Three deployments models are proposed:

  • Software as a Service, in this model our software is hosted in AWS, managed by Nagravision

  • Deployment on VMware provided by the customer

  • Deployment on servers provided by Nagravision (VMware layer embedded)

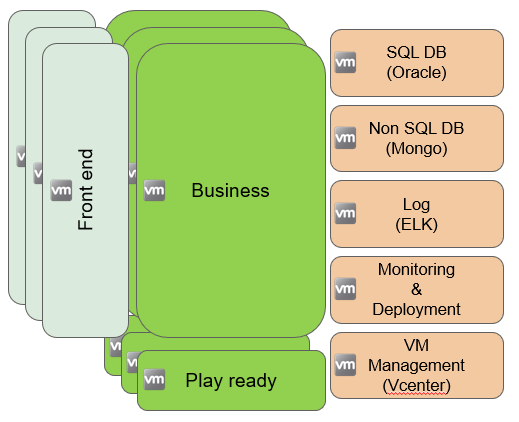

2. Logical Deployment Architecture

Products are delivered with pre-configured VMs for VMware (OVA format)

For upgrade, dataless VMs are replaced by new ones while other VMs are updated (OS + software)

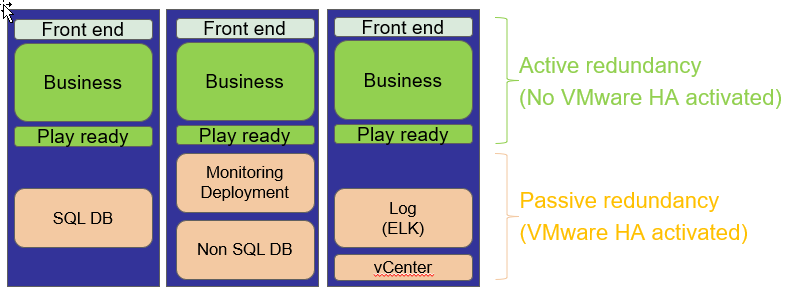

3. Physical Deployment Architecture

These are the requirements on VMs location that must be respected:

  • A bundle of Front-End + Business + PlayReady VMs is provided, instanciated several times

  • Each bundle is deployed on different hardware, no specific redundancy needed (1 bundle failure is supported)

  • For other VMs, "High Availability" must be activated in VMware configuration to ensure a VM restart in case of hardware failure

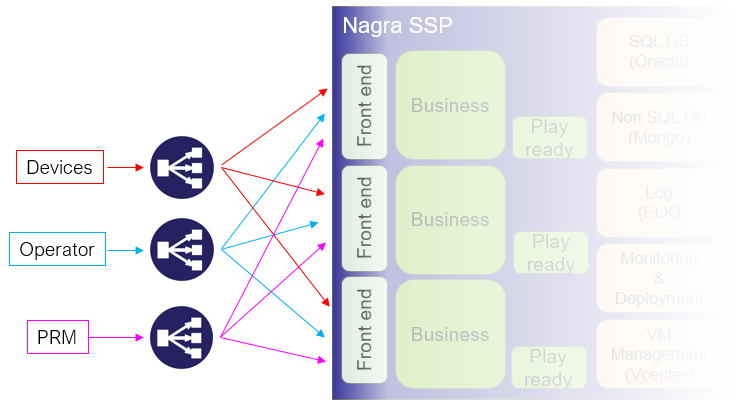

4. Load Distribution

There are three differents entry points:

  • For devices

  • For operator

  • For PRM if any



5. Provided Documents

Guidelines of deployment are provided in following documents:

  • VMware requirements (VMs layout, internal networks and storage requirements)

  • Network requirements (firewall & load-balancer rules)
