Resolution capping

The CONNECT Player SDK for Browsers can apply a resolution cap to DASH streams. This page explains the steps you need to follow to implement resolution capping, together with code examples.

Alternative APIs

APIs exist to set a cap on the resolution, either by an explicit cap of x and y pixels or by declaring a set of preconfigured caps with labels that can be selected from a control bar menu.

Example code for x,y capping

Call the  setMaxResolution()  function, for example:

playerInstance.otvtoolkit().setMaxResolution(640, 480);

To remove this cap use  NaN, NaN:

playerInstance.otvtoolkit().setMaxResolution(NaN, NaN);

Example code for menu-driven capping

After the instantiation of the otvplayer with the otvtoolkit plugin, you need to initialise the otvResolutionCapper component.

playerInstance.otvtoolkit().otvResolutionCapper({});

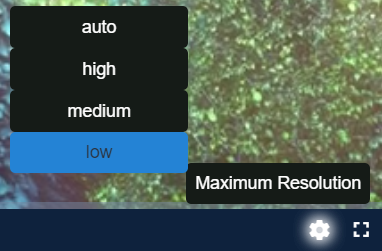

In this default configuration, a settings menu will appear allowing selection from a set of predefined resolution caps:

To apply the cap programmatically, simply call the setQualityCap() method passing the quality level to be applied. For example:

playerInstance.otvtoolkit().otvResolutionCapper().setQualityCap("Low");

In this example, "Low" is one of the default labels configured.

Customising

There are options for customisation and overriding the defaults:

• The quality levels and their labels can be overridden with the following option:

  JavaScript

      playerInstance.otvtoolkit().otvResolutionCapper({
          qualityLabels: {
              Unlimited: [NaN, NaN],
              "1080p": [1920, 1080],
              "720p": [1280, 720],
              "480p": [640, 480]
          }
      });


  An option with the value [NaN, NaN] has the effect of clearing the cap.

• The name of the feature within the control bar menu can be set with the following option:

  JavaScript

    playerInstance.otvtoolkit().otvResolutionCapper({
        menuTitle: "Limit Resolution"
    });
