Migration guide for MediaLive customers

Overview

This guide provides information for customers who are migrating from MediaLive to OpenTV Video Platform (OPF).

It is not intended to be a comprehensive guide to every detail of such a migration, but to provide some important information that is useful to know.

Every migration project is different and will require some degree of custom integration work.

The following information is not intended to replace such work. Please discuss your requirements with your NAGRAVISION representative.

Client impacts

NAGRAVISION has created facades that convert client calls from MediaLive calls to OpenTV Video Platform (OPF) calls. These are transparent to the client, but it is useful to understand what is happening behind the scenes (especially if newer client devices will connect directly to OpenTV Video Platform in the future).

These are explained in the following subsections.

Auth Facade

The Auth Facade enables the following MediaLive calls to be made from existing STBs to OPF with no changes required to the client:

Pair NOCS devices

Pair NOCS devices

Pairs a NAGRA On-Chip System (NOCS) device with another NOCS device, allowing it to read content encrypted by the other device.

MediaLive request (to SDP)
GET https://<host>:<port>/hue-gateway/gateway/http/js/linkedStbService/pairNocsDevices

See the following sections of the MediaLive documentation:

Equivalent OPF request (to CAG)

N/A


Get signon tokens

Get signon tokens

Retrieve a signon token.

MediaLive

OPF

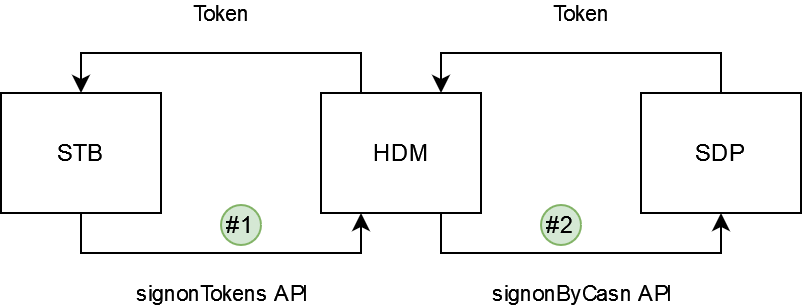

signon tokens existing.png

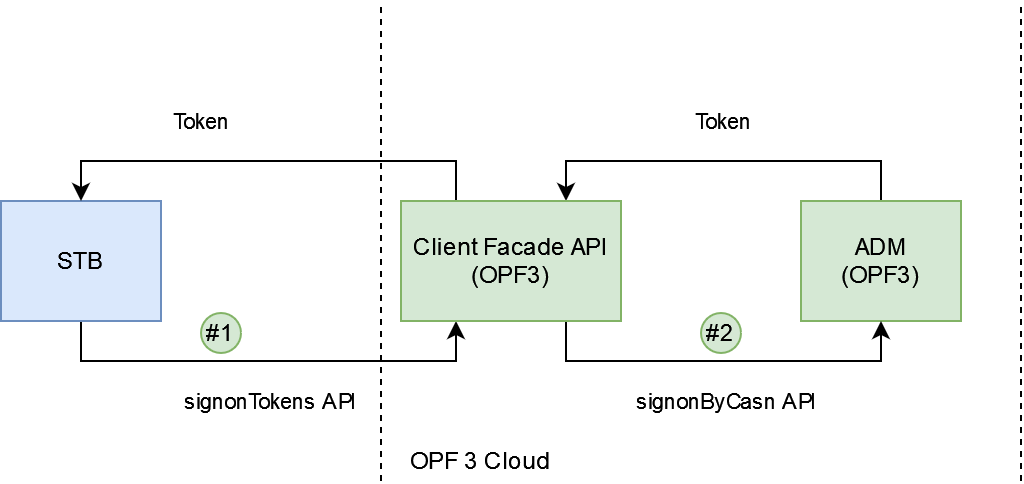

signon tokens new.png
MediaLive request (to HDM)
GET https://<host>:<port>/api/authentication/v1/signontokens

See the following sections of the MediaLive documentation:

Equivalent OPF requests (to IAS)
POST https://<host>:<port>/v3/token/actions/signOnByCasn
POST https://<host>:<port>/v3/token/actions/signOnBySmartCardId


There are two endpoints – one for devices that have a smartcard, and one for devices that do not have a smartcard.

See:


Get current context

Get current context

Get information about the account, user, device, etc.

MediaLive

OPF

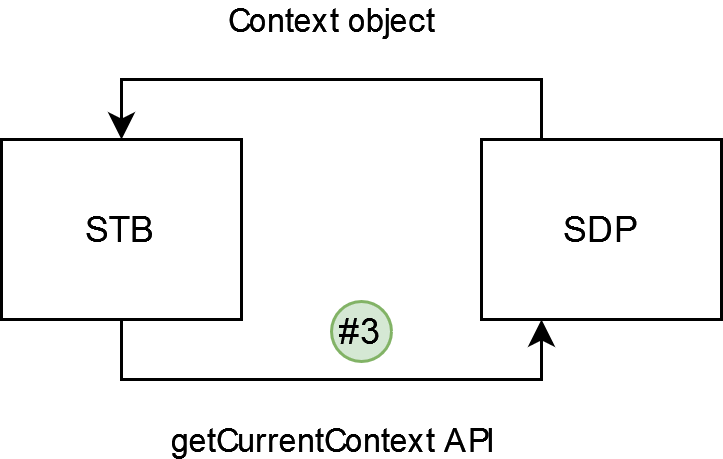

getCurrentContext ML.png

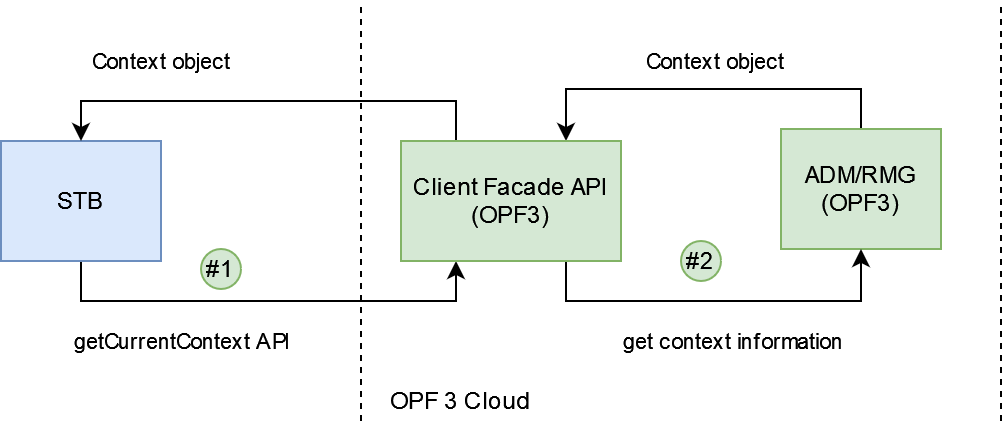

getCurrentContext OPF.png
MediaLive request (to SDP)
GET https://<host>:<port>/hue-gateway/gateway/http/js/contextService/getCurrentContext

See the following sections of the MediaLive documentation:

Equivalent OPF requests (to ADM)
GET https://<host>:<port>/v1/bundled/devices/{uid}
GET https://<host>:<port>/v1/bundled/devices/casn/{caSN}


There are two endpoints – one using the device ID, one using its caSN.

See:


Get entitlements

Get entitlements

This request gets all the entitlements for the account.

MediaLive request (to MDRMM)
GET https://<host>:<port>/client/getEntitlements

See the following sections of the MediaLive documentation:

Equivalent OPF requests (to RMG)
GET https://<host>:<port>/rmg/v1/user/entitlements

See:

Although Auth Facade supports this endpoint, due to the varied nature of MediaLive deployments, some customisation work will be necessary.








This internal section is for stuff we might want to add back in later.

Overview

The main differences are explained in the following sections:

  • Client impacts – NAGRAVISION has created a number of facades that convert client calls from OPF2 calls to OpenTV Video Platform (OPF3) calls. These are transparent to the client, but it is important to understand what is happening behind the scenes (especially if newer client devices will connect directly to OpenTV Video Platform in the future).

  • Data mappings – the data models in OpenTV Video Platform (OPF3) are a bit different from those of MediaLive/OPF2. Although your data will be migrated for you, it is important to understand how the

Client impacts

MDS facade

<To be added>

Data mapping

<To be added>
