Overview

A magazine strip defines a rail that is double-height, multi-tile, and can optionally contain hero tiles that span multiple rows. This type is often used for layouts where the content is presented in a magazine-style format, with visually impactful tiles (e.g., hero tiles) that stand out and occupy more space compared to the other smaller tiles.

Example configurationProperties response

For a rail that uses a magazine strip blueprint (in this case, the Hero Magazine 1 instance), the rail’s configurationProperties block looks like this.

JSON

...
"configurationProperties": {
  "client_context": [
    "double height",
    "uniform",
    "2x3 hero"
  ],
  "hero_tile_repeat": true,
  "edge_peek": true,
  "instance": "Hero Magazine 1",
  "layout_style": "dual_row_hero_grid",
  "visible": true,
  "grid_tile_pattern": [
    "4x3"
  ],
  "type": "magazine_strip",
  "scroll_type": "infinite_scroll",
  "grid_tile_pattern_invert": false,
  "hero_tile_aspect_ratio": "2x3",
  "tile_style": "default",
  "spanned_row_navigation": "directional",
  "max_pages": 0,
  "show_more": false
},
 ...

Fields

The following table lists the fields that are specific to magazine strip blueprints. (SeeRail reponses for a full list of rail fields.)

A custom instance of the magazine strip might use any of the available values in the table.

A built-in instance will use specific values as listed in Magazine strip instances, below.

Keys	Type	Values	Description
`type`	static	`magazine_strip`	The `type` field defines the type of rail this blueprint describes. magazine_strip: A `magazine_strip` type defines a rail that is double-height, multi-tile, and can optionally contain hero tiles that span multiple rows. This type is often used for layouts where the content is presented in a magazine-style format, with visually impactful tiles (e.g., hero tiles) that stand out and occupy more space compared to the other smaller tiles.
`layout_style`	enum	`dual_row_hero_grid,` `dual_row_grid_hero,` `single_row_grid`	The `layout_style` field specifies how the tiles should be arranged within the rail. These options allow for flexibility in how larger tiles (such as hero tiles) are placed alongside smaller content tiles. Hero tiles are optional, but when included, they may repeat at different points within the layout. dual_row_hero_grid: This layout style places a large hero tile that spans both rows at the beginning of the rail, followed by smaller grid-style tiles. Hero tiles can repeat throughout the layout, acting as focal points, while the grid tiles present additional content in a more compact, uniform format. dual_row_grid_hero: In this style, the grid layout is displayed first, with two rows of smaller tiles, followed by a large hero tile that spans both rows. Hero tiles can repeat throughout the layout, acting as focal points, while the grid tiles present additional content in a more compact, uniform format single_row_grid: A simple single row grid layout with no hero tiles. Tiles will be double height.
`grid_tile_pattern`	enum selector (duplicates on, re-ordering on)	`default,` `16x9,` `4x3,` `3x2,` `2x3,` `4x5,` `1x1`	The `grid_tile_pattern` field defines the layout and aspect ratio of tiles within the rail. This pattern, which may consist of a combination of aspect ratios, is repeated across the rail, and can accommodate duplicate tiles. When combined with hero tiles, the pattern is repeated as part of the overall layout, ensuring consistency in how tiles appear throughout the rail. default: The tile pattern is dynamically determined by the client, meaning the client has full control over how the tiles are arranged. 16x9, 4x3, 3x2, 2x3, 4x5, 1x1: These are fixed aspect ratios for tiles. You can specify multiple ratios, and they will be repeated across the rail in the order selected. When hero tiles are used, they will be incorporated into the repeating pattern either at the start, or at the end Examples: Single aspect ratio: 4x3 Result: [4x3] [4x3] [4x3] ... Multiple aspect ratios: 4x3, 16x9 Result: [4x3] [16x9] [4x3] [16x9] ... Multiple aspect ratios with duplicates: 4x3, 4x3, 16x9, 16x9 Result: [4x3] [4x3] [16x9] [16x9] ... Combination with repeating hero tiles: 4x3, 16x9, (hero tiles) Result: [4x3] [16x9] [Hero] [4x3] [16x9] [Hero] .. Combination with non-repeating hero tiles: 4x3, 16x9, (hero tiles) Result: [4x3] [16x9] [Hero] [4x3] [16x9] [4x3] [16x9] ....
`grid_tile_pattern_invert`	boolean		The `grid_tile_pattern_invert` field allows for the inversion of the aspect ratio pattern across rows within a 2-row grid. When set to `true`, the aspect ratios specified for each row in the `grid_tile_pattern` are inverted between the rows. This feature simplifies the configuration for alternating aspect ratios between two rows, where the pattern in row 1 is swapped for row 2, creating a visually dynamic effect. When set to `true`: The pattern specified for row 1 is inverted in row 2. For example, if row 1 is configured as 4x3, 16x9, the result for row 2 would be 16x9, 4x3. When set to `false` (the default): The pattern defined in `grid_tile_pattern` will be applied consistently across both rows, without inversion.
`hero_tile_aspect_ratio`	enum	`default,` `16x9,` `4x3,` `3x2,` `2x3,` `4x5,` `1x1`	The `hero_tile_aspect_ratio` field specifies the aspect ratio for the "hero" tile within a rail layout. The hero tile is typically a larger, more prominent tile designed to draw attention, often placed at the top or highlighted within a section. In a configuration where there are two rows, the hero tile is always intended to span both rows, providing a larger visual impact. default: The aspect ratio of the hero tile is dynamically determined by the client, giving full control over how the hero tile is rendered. 16x9, 4x3, 3x2, 2x3, 4x5, 1x1, 3x1, 4x1: These are fixed aspect ratios for tiles.
`hero_tile_repeat`	boolean		The `hero_tile_repeat` field controls whether the hero tile appears multiple times within the grid layout, or just once, providing flexibility for layouts with either a single or multiple hero tiles. true: The hero tile will be inserted repeatedly in the grid layout, appearing at multiple positions according to the selected tile pattern. This is useful when multiple hero tiles are needed across the rail for visual consistency or emphasis. false: The hero tile appears only once, typically spanning multiple rows at the top of the rail, providing a singular, prominent visual.
`show_more`	boolean		The `show_more` setting instructs the client whether to display a “Show More” link or button within the rail. This link allows users to navigate to a separate screen or view that is specific to the rail content, offering more detailed or expanded options. This is typically used when the content in the rail exceeds the initial set of items shown, and the user can view more items in a dedicated section. true: Displays the “Show More” link or button, allowing the user to load additional content or navigate to a more detailed view. false (default): Hides the “Show More” link, limiting the user to the initially displayed content without offering the ability to view more. Notes: The actual placement, behaviour and flow of the “Show More” functionality (e.g., the navigation to the next screen or the content load mechanism) is not defined within this blueprint and must be implemented by the client as needed. The client should ensure that the “Show More” experience is intuitive and aligns with the content layout and user interface
`max_pages`	numeric (0 to 1000)		The `max_pages` setting defines the maximum number of pages that can be retrieved for the rail. This value allows clients to control the number of results displayed within the rail, offering more control over how much content is shown at once. 0: No restriction on the number of pages. The client can continue retrieving pages until no more are available, allowing for an infinite or uninterrupted content stream. > 0: The client is restricted to retrieving no more than the specified number of pages. If the rail can display more content, the client must stop retrieving additional pages once the limit is reached. The `max_pages` value is an absolute maximum. However, there may not be enough content available to reach the full amount defined. In other words, if the total number of items is less than the maximum, the client will only retrieve what is available. If `max_pages` is set to a specific limit and more content exists, the `show_more`field can be used to allow the user to "break out" from the rail into a separate page where the max_pages limit is no longer applied. This would allow access to more content beyond the specified `max_pages` restriction. Example Usage: Unlimited pages: `max_pages: 0` This would allow the client to continue fetching additional pages as long as more content is available, without any artificial limitations. Limited pages: `max_pages: 5` This would indicate the client should be restricted to only retrieving up to five pages, even if more pages are available in the rail's content source. If fewer than five pages are available, the client will retrieve what is available.
`visible`	boolean		The `visible` setting acts as a simple flag that allows the client to show or hide a rail without removing it from the template or layout. true (default): The rail will be displayed to the user within the layout. false: The rail will be hidden from view but still remains part of the template. It can be toggled back to true later without needing to modify the layout or template structure.

Magazine strip instances

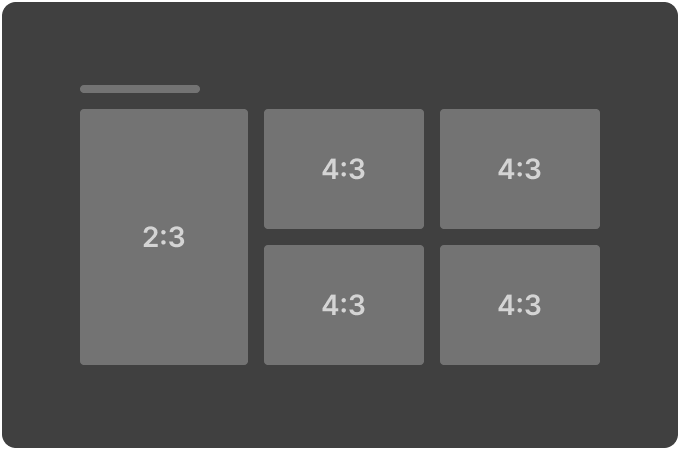

Hero Magazine 1 (2:3 Hero / 4:3 Dual Row)

Appearance	Key	Values
	`type`	`magazine_strip`
	`layout_style`	`dual_row_hero_grid`
	`grid_tile_pattern`	`["4x3"]`
	`grid_tile_pattern_invert`	`false`
	`hero_tile_aspect_ratio`	`"2x3"`
	`hero_tile_repeat`	`true`
	`show_more`	`false`
	`max_pages`	`0`
	`visible`	`true`

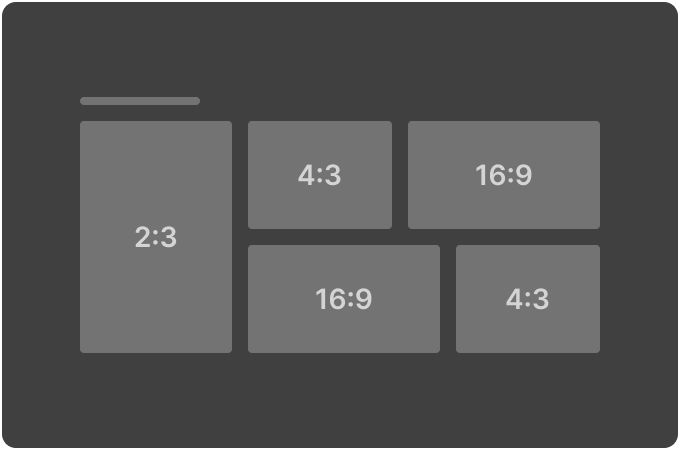

Hero Magazine 2 (2:3 Hero / Alternating 4:3 & 16:9 Dual Row)

Appearance	Key	Values
	`type`	`magazine_strip`
	`layout_style`	`dual_row_hero_grid`
	`grid_tile_pattern`	`["4x3","16x9"]`
	`grid_tile_pattern_invert`	`true`
	`hero_tile_aspect_ratio`	`"2x3"`
	`hero_tile_repeat`	`true`
	`show_more`	`false`
	`max_pages`	`0`
	`visible`	`true`

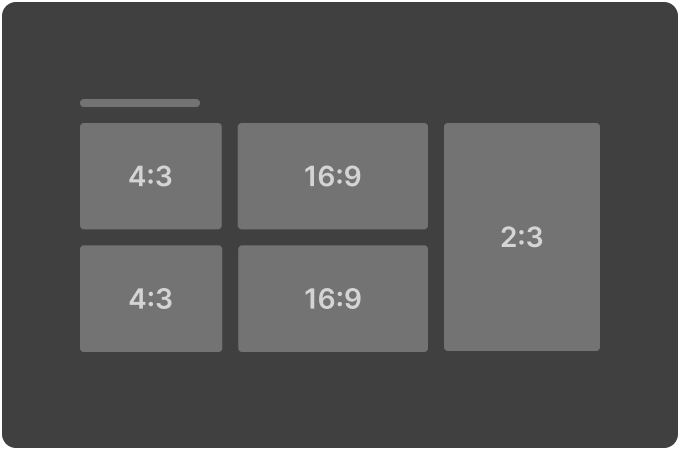

Hero Magazine 3 (4:3 & 16:9 Dual Row / 2:3 Hero)

Appearance	Key	Values
	`type`	`magazine_strip`
	`layout_style`	`dual_row_grid_hero`
	`grid_tile_pattern`	`["4x3","16x9"]`
	`grid_tile_pattern_invert`	`false`
	`hero_tile_aspect_ratio`	`"2x3"`
	`hero_tile_repeat`	`true`
	`show_more`	`false`
	`max_pages`	`0`
	`visible`	`true`

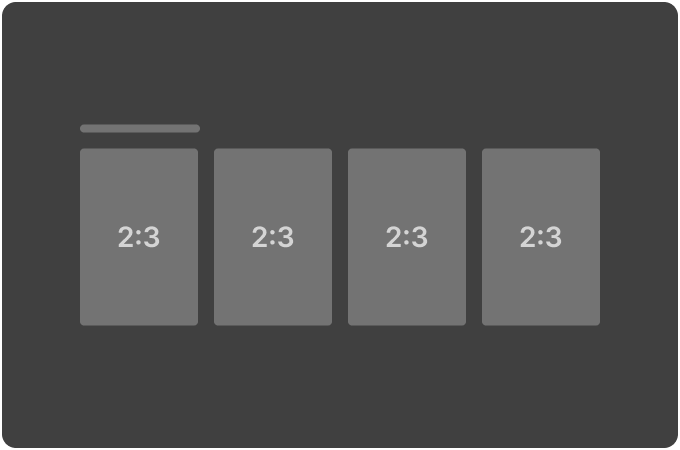

Large Poster Magazine (2:3 single row)

Appearance	Key	Values
	`type`	`magazine_strip`
	`layout_style`	`single_row_grid`
	`grid_tile_pattern`	`["2x3"]`
	`grid_tile_pattern_invert`	`false`
	`hero_tile_aspect_ratio`	`"default"`
	`hero_tile_repeat`	`false`
	`show_more`	`false`
	`max_pages`	`0`
	`visible`	`true`
