OpenTV ION building blocks

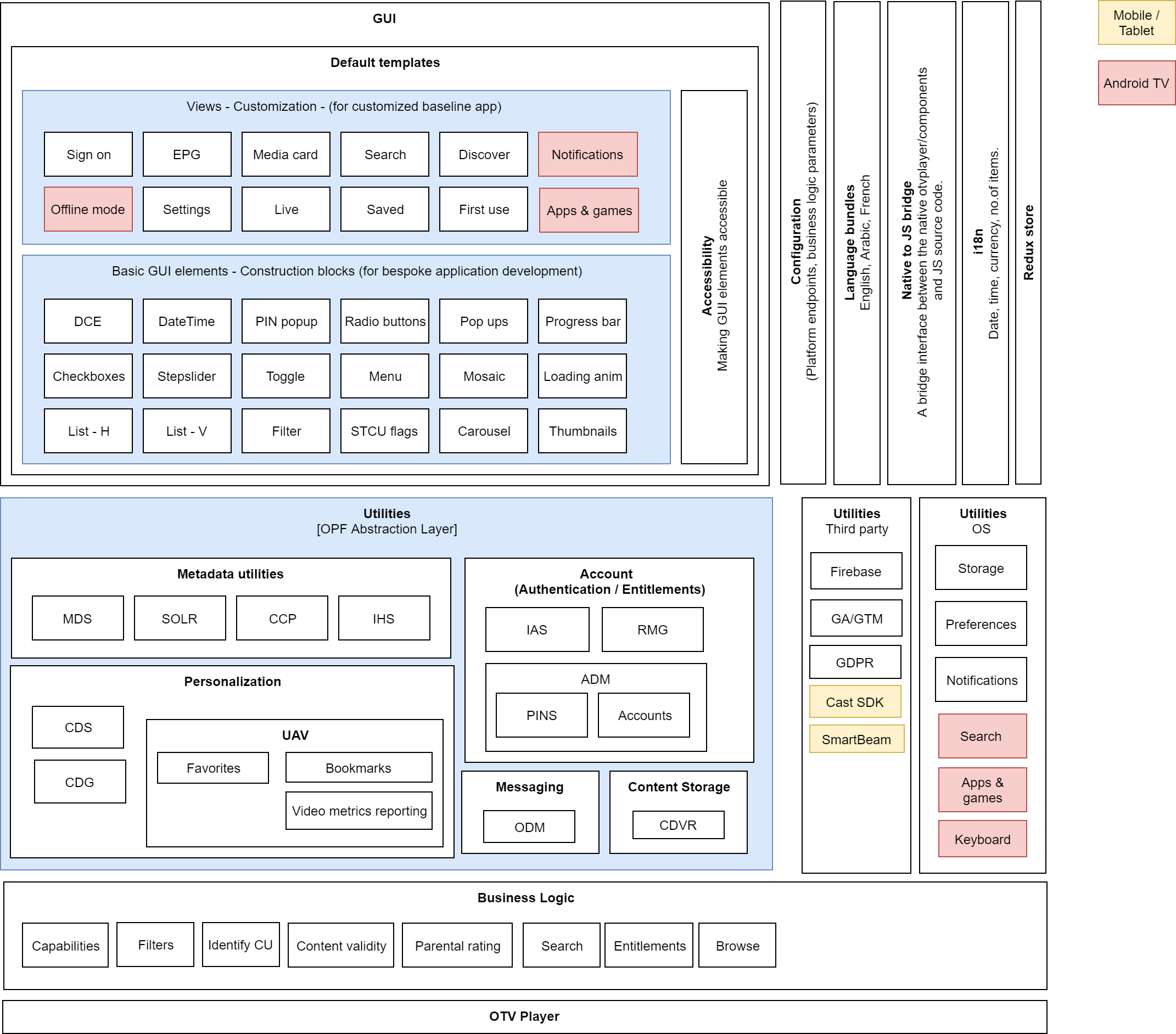

Here is is a detailed view of the OpenTV ION building blocks.


GUI

In the diagram above, the compound user interface elements are often referred to as screens or views. There are a number of UI elements within each screen. These are identified and further broken down into different smaller components. There are common elements used across the screens. In the OpenTV ION source code, you get more detail on the whereabouts of these logical structures.


Screen/view

Description

Devices - Android and iOS

Sign on

Login screen for OpenTV ION

All

EPG

Shows live content (present, future as well as past) metadata in grid guide fashion

All

Media card

Shows the media card for an item of content, with certain actions such as Favorite, Record, Play, Preview etc

All

Search

Enables the user to search for content and view the search results

All

Discover

Shows personalized content for the user based on his/her watch history, along with promoted strips from the backend

All

Settings

Shows list of OpenTV ION-related settings such as parental control PIN, parental control settings, subscription, video resolution settings etc

All

Live

Shows current list of live events across all channels

All

Saved

Shows a list of user recorded or scheduled recordings

All

First use

Shows a list of default settings which can be changed during first time sign-in to OpenTV ION app

All

Notifications

Shows a list of system notifications

Only for Android TV

Offline mode

Shows a minimal list of OpenTV ION app menu options when no internet is available

Only for Android TV

Apps & Games

Shows a list of Android TV Apps and Games installed in the STB box as per Google operator tier

Only for Android TV

Basic GUI elements

These are common components used across the screens:

  • DCE - Direct Channel Entry

  • DateTime

  • PIN pop-up for parental control

  • Radio buttons

  • Progress bar

  • Check boxes

  • Slider for parental ratings

  • Toggle button

  • Menu - to show menu item

  • Animation

  • Mosaic - to show carousel in Discover for mobile devices

  • Horizontal list

  • Vertical list

  • Filter

All

Accessibility

GUI elements are enabled for accessibility wherever it is deemed necessary and beneficial to the end users.

Configuration

App UI Skin (colors, fonts) can be customized as per operator needs. Also OPF platform end point URL can be specified in the configuration and can be bundled along with source code during app binary generation. More details can be found here.

Language bundle

All strings are localized and can be modified for supported languages - English, Arabic and French. More details can be found here.

JS to native bridge

An interface to link JS source code with native code to achieve certain functionalities within the app to meet business needs.

App state management

Each view is backed by one or more redux store (cached) metadata elements which are fetched asynchronously from relevant sources (micro services or OS internal interfaces).

Utilities

Utilities are logical groups of functionality used by the UI elements.

Utility name

Description

OVP

A group of logic that helps to interact with micro services of OpenTV Video Platform (MDS, IAS, RMG etc):

  • Account - IAS, RMG to manage the sign-in accounts and handle rights management for the content

  • ADM - to manage account PIN and limit the number of devices to watch per account

  • Personalization

    • CDS and CDG - mainly to aggregate content from different sources and provide metadata to clients in a consistent manner

    • UAV - to manage favorite content and channels, bookmarks of partially watched non-live content and related video metrics reporting

  • Messaging - mainly to push messages to client devices

  • Content Storage - CDVR mainly to store and manage schedule recordings as well as recorded content for client devices

OS

A group of logic that helps to interact with the underlying OS and its features to be used in the GUI as needed:

  • Player components

  • Orientation

  • Date picker in EPG

  • Loading of assets

  • Local storage

  • Search (for Google Assist only for Android TV)

  • Apps & Games (only for Android TV)

  • Keyboard (only for Android TV)

Implementation is specific to each device platform - Android and iOS

Thirdparty

A group of logic that helps to interact with native OS or third party servers (non-NAGRA):

  • Firebase - mainly to collect a broad set of analytics based on user interactions within the app. This will get collated and can be viewed in Firebase dashboard.

  • GDPR - OpenTV ION app is compliant with GDPR regulations as it doesn't store user information within the app, and only non-personalised usage patterns are aggregated via Analytics

  • Cast SDK - to show Cast option while watching content on mobile/tablet

  • SmartBeam - specific to an operator who deployed OpenTV ION in their region

Business logic

There are specific filters applied to backend APIs based on user settings and operator deployment needs so that appropriate content is shown in GUI.

  • Capabilities - Catch-up content

  • Filters - e.g. number of days live metadata to show in EPG

  • Identify CU - logic to identify if catch-up is available in metadata

  • Content Validity - logic to filter valid content before presenting it to the user in GUI

  • Search - logic to filter content based on a set of rules (e.g. actor, genre, type of content - catch-up, live, etc.)

  • Entitlements - logic to show the content rights available associated with account before playback

  • Browse - logic to show a list of catch-up and on-demand content based on operator

OTV Player

A NAGRA-owned player product that has an SDK for different platforms is integrated (per platform) into the application.

Refer to OTV Player documentation for Android and iOS here.
