By default, ION will use the LAYOUT flag to determine the orientation of the images on a rail. When Landscape is selected, images use a 16:9 aspect ratio; when Portrait is selected, a 2:3 aspect ratio is used. You can override these layouts by adding an additional ui_layout property.
To set an additional property:
-

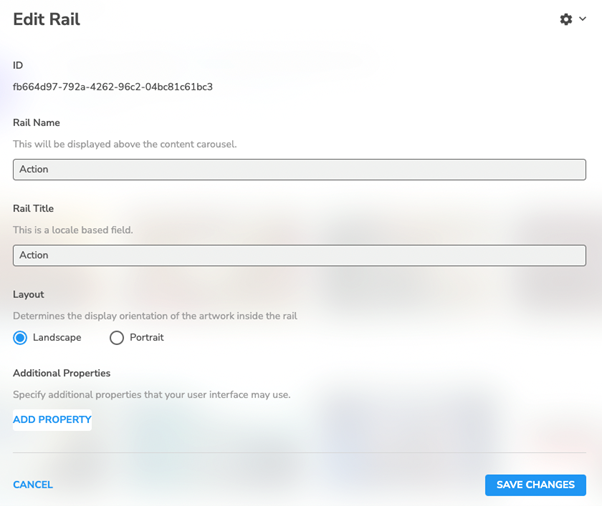

Select the template and then select Edit Rail Properties from the menu.
-

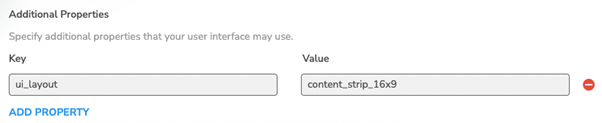

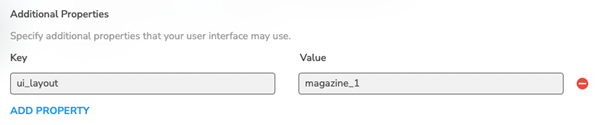

Click ADD PROPERTY and enter the details below.
-
Click the SAVE CHANGES button.
UI_LAYOUT for all devices
The following values for UI Layout apply to all ION client devices. Two types of layout are available – a Magazine style and a Content Strip style.
Magazine style layout
The following values are provided:
-

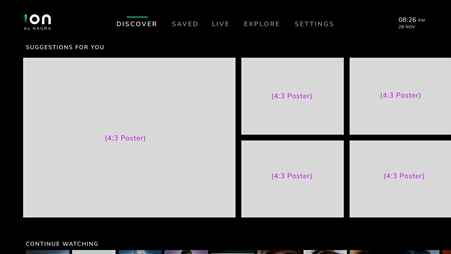

magazine_0
Click here to see an example layout
-

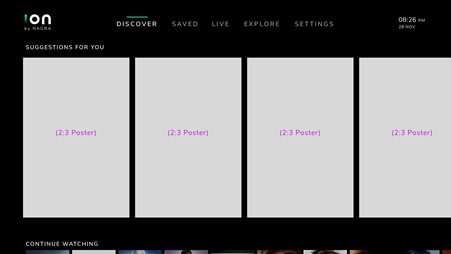

magazine_1
Click here to see an example layout
-

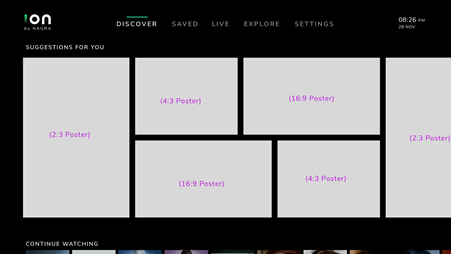

magazine_2
Click here to see an example layout
-

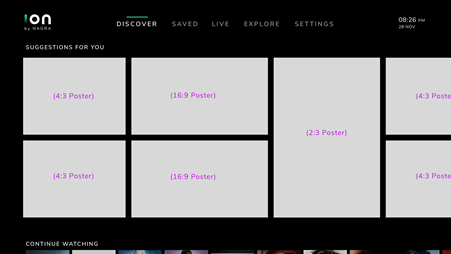

magazine_3
Click here to see an example layout
Content Strip style layout
The following values are provided:
-
content_strip_2x3
-
content_strip_2x3_4x3
-
content_strip_16x9
-
content_strip_4x3

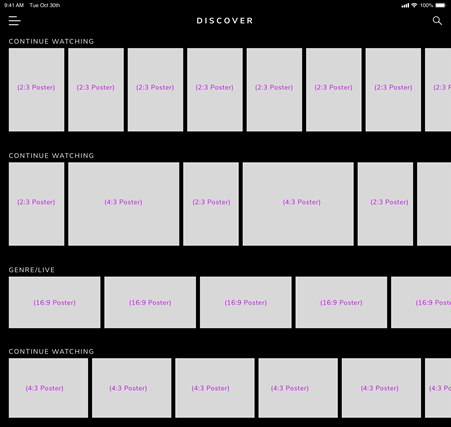

Click here to see an example of the content strip layouts.
UI_LAYOUT for mobile devices only

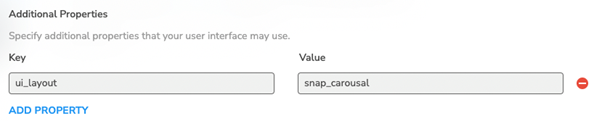

The snap_carousal value creates a large poster-style rail with a single asset in focus:

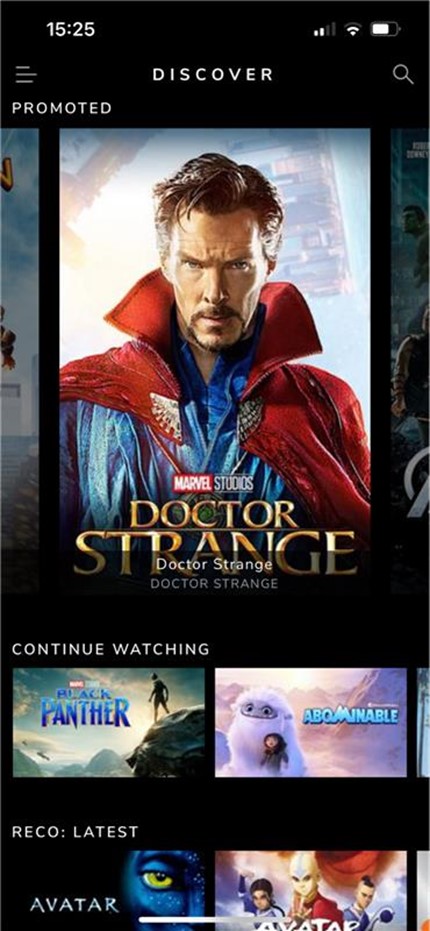

Click here to see an example mobile layout

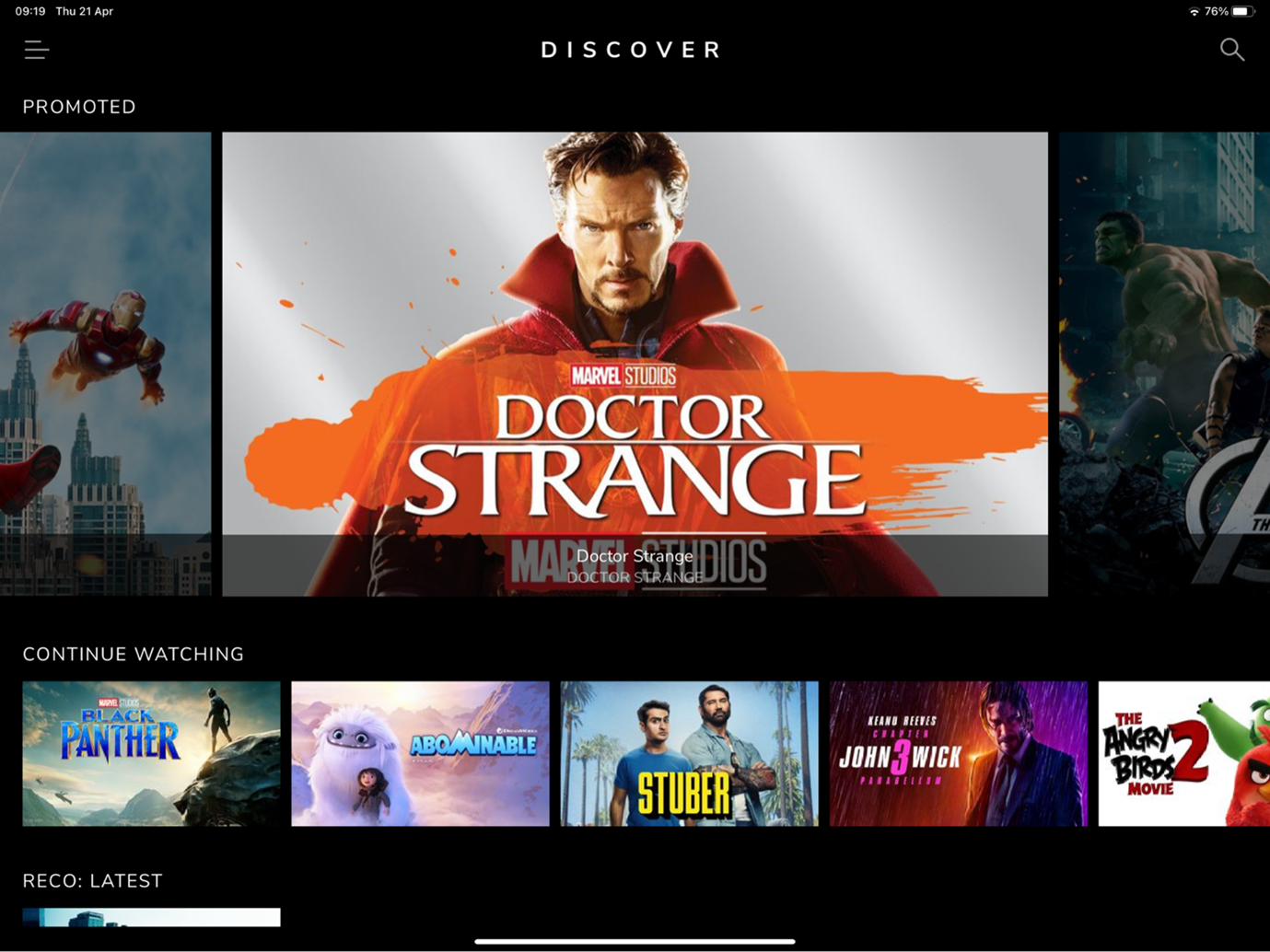

Click here to see an example tablet layout
