OpenTV ION

Discover screen

Supported functionality

  • Curated content is presented to the user in easy and convenient ways via Magazine and Discover strips

  • Magazine is a mosaic of content and can contain live, VOD and catch-up events, which are fetched real time whenever the view is launched

  • User can launch media card to see more information

  • In some devices, based on configuration, users can launch a Browse screen by using the TV Networks or On Demand buttons at the bottom of the screen

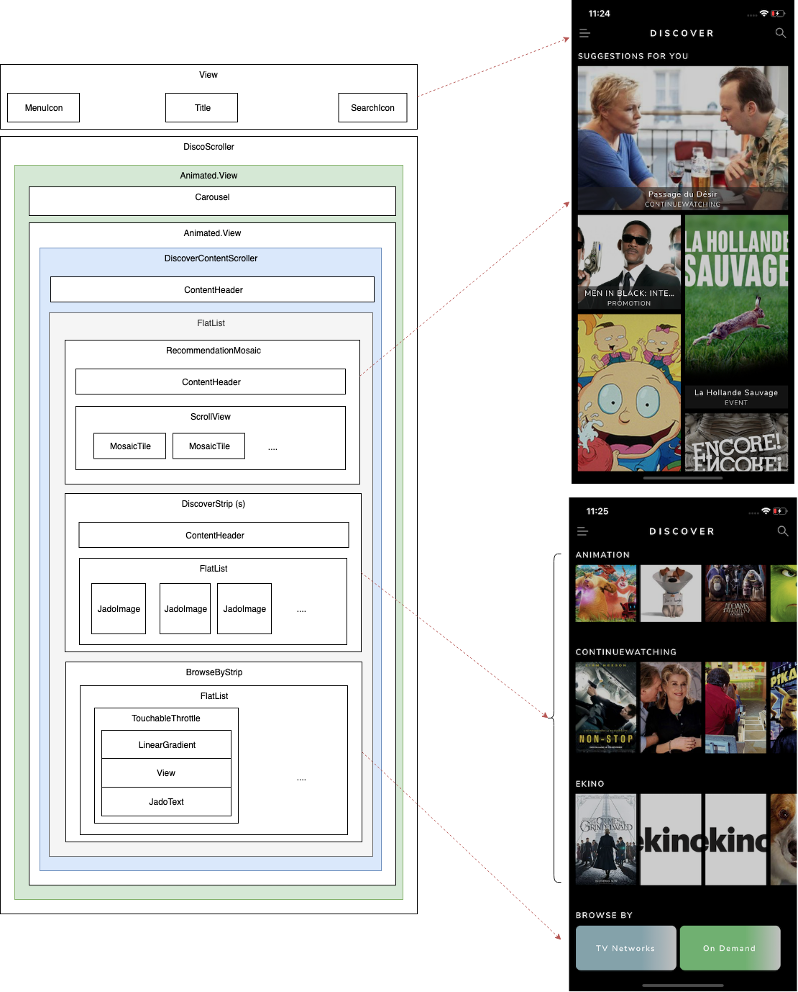

High level component composition

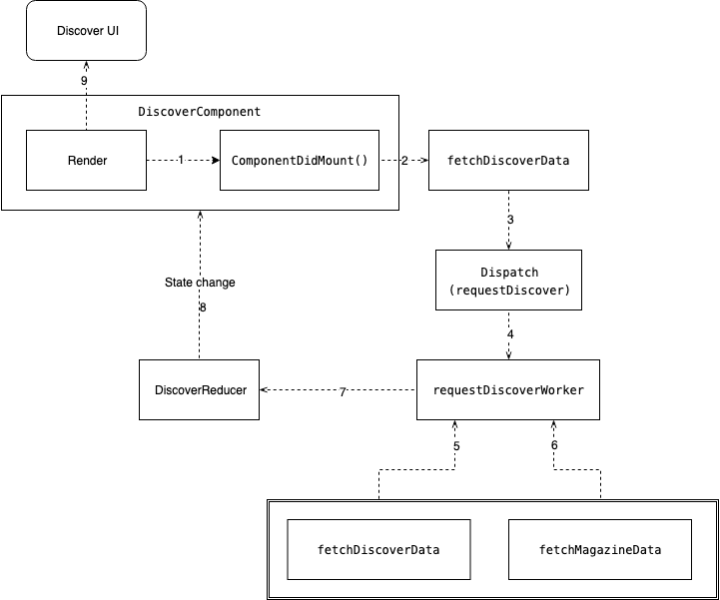

Rendering sequence




  • Rendering of item in numbered phases

  • Component requesting service information would follow this pattern to receive data from the server and pass on the data to the component using state change via the reducer

  • All screens show activity indicator in case of waiting for server response


Supported configuration

Refer to Configuration for details:

  • discoverScreenConfig
