OpenTV ION

Live screen

Supported functionality

  • Represents currently playing events on live channels

  • Contains:Search and filterVideo preview of liveSubscription information

  • Live events are refreshed if the user stays on this screen and an event lapses

  • User can press event and launch its media card

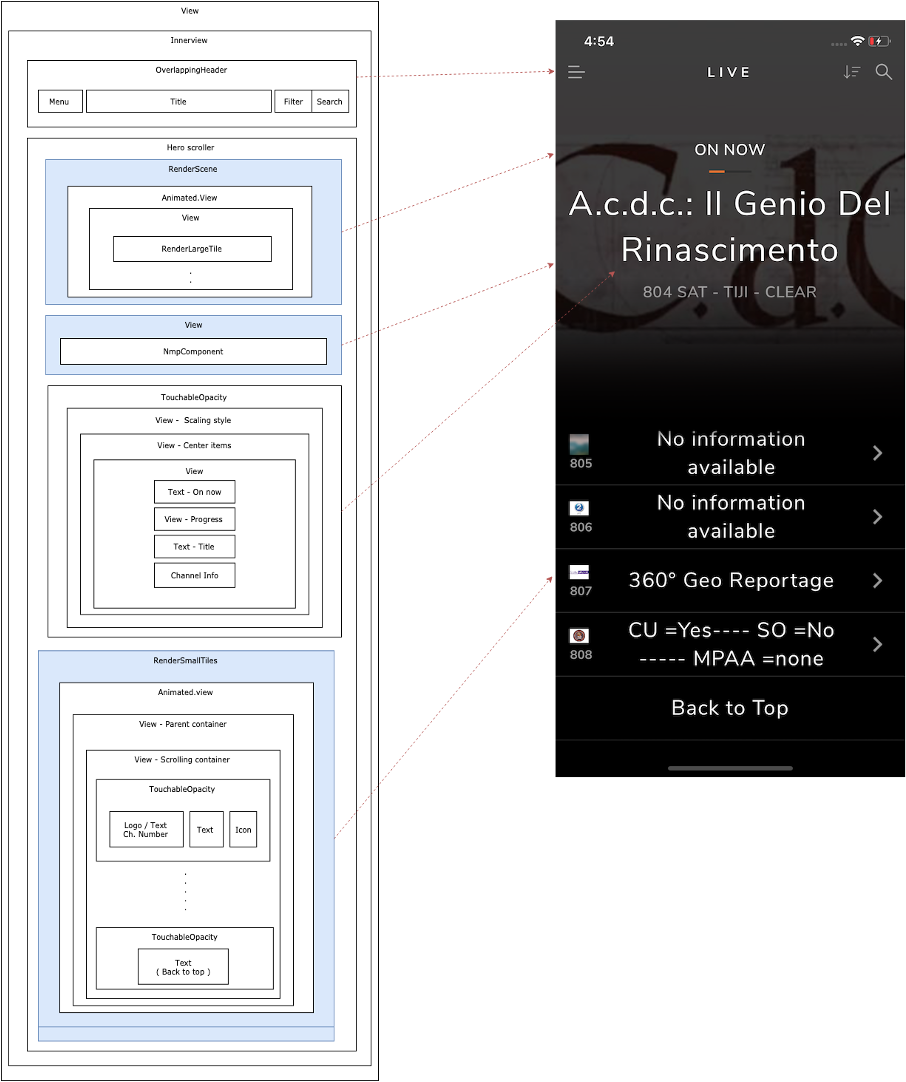

High level component composition

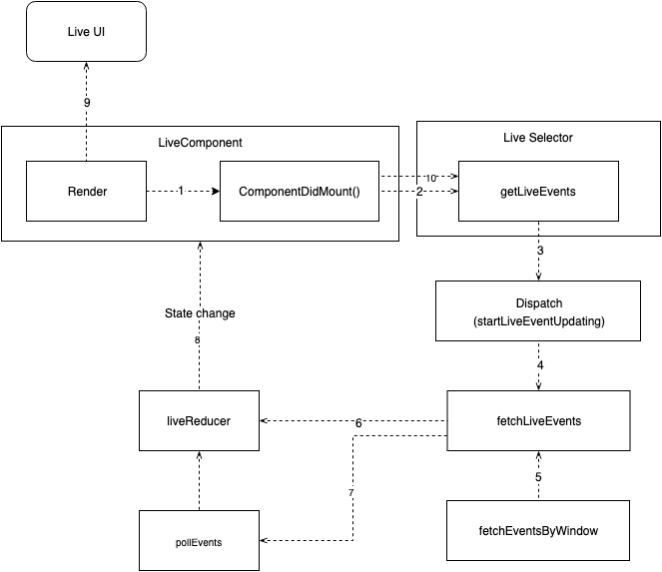

Rendering sequence




  • Currently playing events are fetched for display in the interface

  • Live data has a polling mechanism once loaded to check for events that could expire

  • When data is received, it is transformed to include information, related subscription etc


Supported configuration

Refer to Configuration for details:

  • LIVE_EPG_HEADER

  • MENU_LIVE
