Replay channel events screen

Replay channel events screen is launched on the click of any of the channels under All networks in the Replay screen.

Supported functionality

• Display all catch-up events for a particular channel by date

  • The number of days for which events must be displayed is configurable with socuBuffer.flag

  • Limit of number of events displayed is configurable with latestEventLimit flag

  • Current channel limit is 17

  • If number of channels exceeds the limit, the See All tile will be displayed

OPF backend query

Events query

https://{host}/metadata/delivery/GLOBAL/btv/programmes?filter={"period.start":{ "$gt": 1591315200 },"period.end":{ "$lt": 1591364911  },"isCatchUp":true,"locale":"en_GB","serviceRef":{ "$in": ["GLOBAL_20711"],"$ne": [""] }}&limit=17&sort=[["period.start", -1]]

Configuration

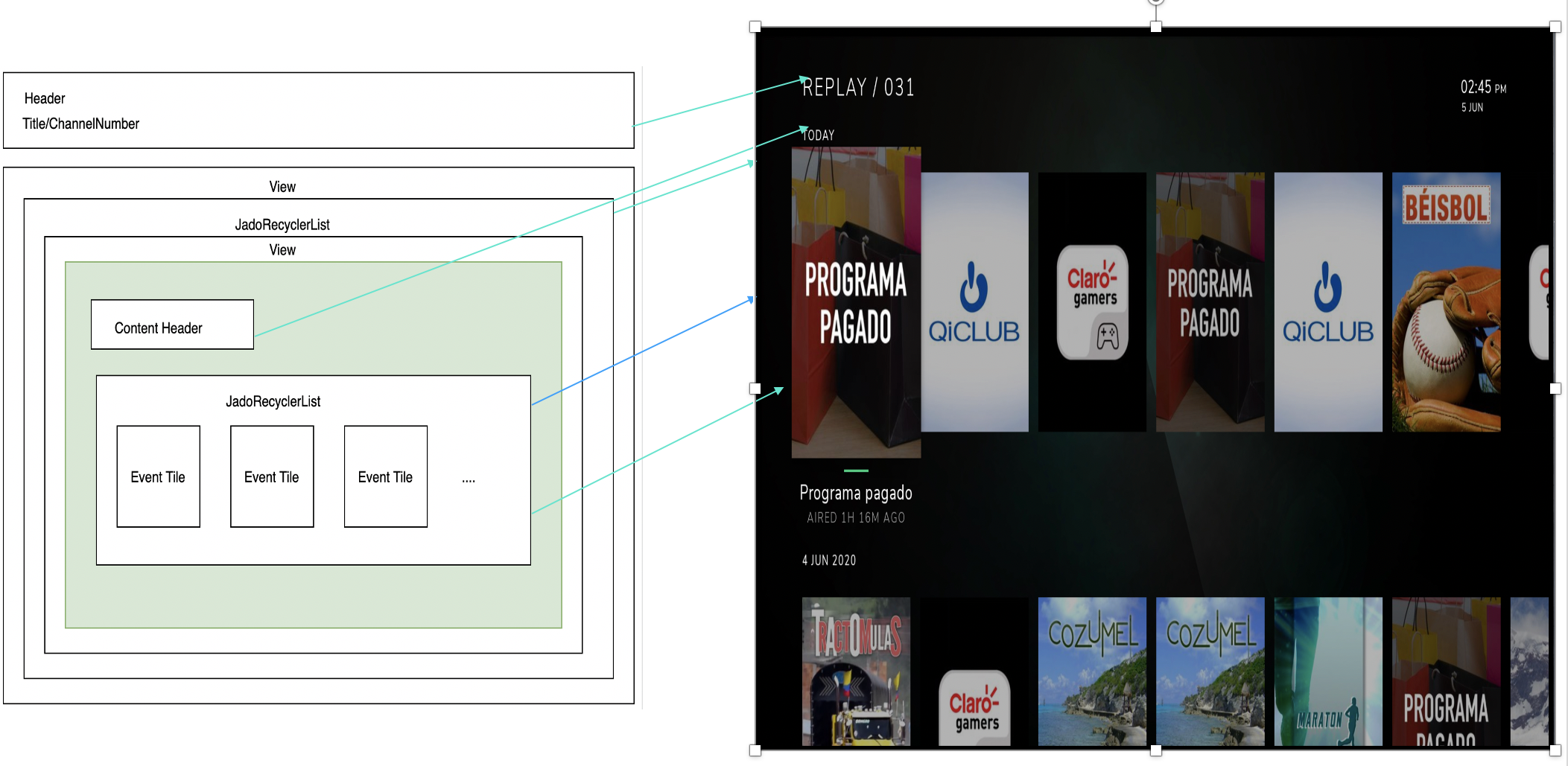

High level component composition

AndroidTV

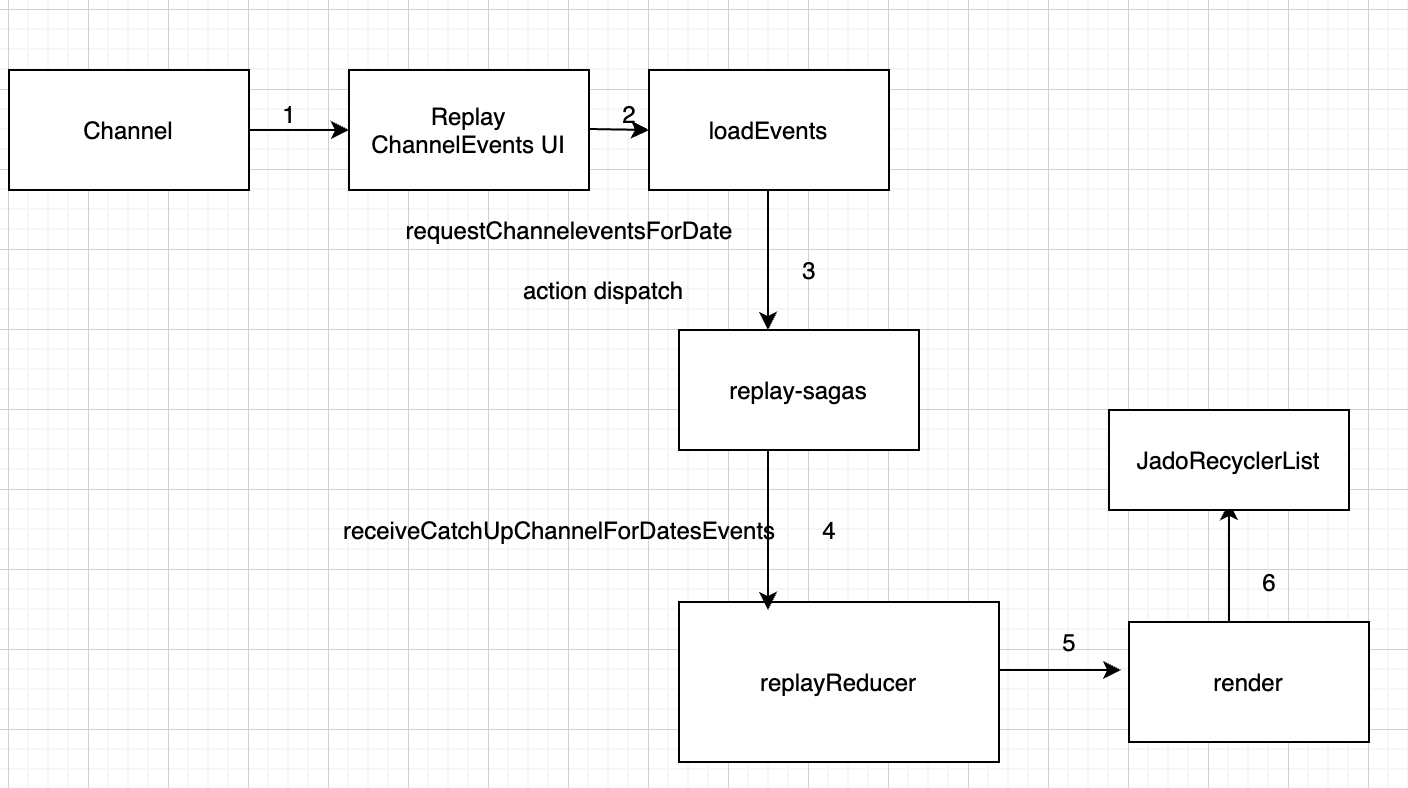

Rendering sequence

• When a channel is selected under All Networks, the replay channel event page is displayed

• On page load, getCatchUpEventsForDate is dispatched to fetch the events based on the channel by date up to the configurable day

• Events are displayed by fetching data from replayReducer via requestChannelEventsForDate() selector API
