Promotional strips

Overview

A promotional strip rail is designed to highlight featured or time-sensitive content, such as special offers, exclusive releases, or marketing-driven material/advertisements. This type of rail may be visually distinct, include attention-grabbing elements, or allow for dynamic content updates based on promotional cycles.

These are designed to work in conjunction with feature_banner rail items, although they can accept any standard rail item.

See Feature banner custom component.

Example configurationProperties response

For a rail that uses a promotional strip blueprint (in this case, the Single Promotion: 3:1 Dual Height Row instance), the rail’s configurationProperties block looks like this.

JSON

...
  "configurationProperties": {
    "client_context": [
      "double height",
      "uniform"
    ],
    "instance": "Single Promotion: 3:1 Dual Height Row",
    "layout_style": "dual_height",
    "visible": true,
    "tile_style": "promotion",
    "type": "promotional_strip",
    "carousel": false,
    "tile_pattern": [
      "3x1"
    ]
  },
...

Fields

The following table lists the fields that are specific to promotional strip blueprints. (SeeRail reponses for a full list of rail fields.)

A custom instance of the standard strip might use any of the available values in the table.

A built-in instance will use specific values as listed in Promotional strip instances, below.

Keys	Type	Values	Description
`type`	static	`promotional_strip`	The `type` field defines the category of rail this blueprint describes. A promotional_strip rail is designed to highlight featured or time-sensitive content, such as special offers, exclusive releases, or marketing-driven material/advertisements. This type of rail may be visually distinct, include attention-grabbing elements, or allow for dynamic content updates based on promotional cycles. These are designed to work in conjunction with `feature_banner` rail items, although they can accept any standard rail item.
`layout_style`	enum	`triple_height,` `dual_height,` `single_height`	The `layout_style` field specifies how the tiles should be arranged within the rail. triple_height: A simple single-row, triple-height layout dual_height: A simple single-row, double-height layout single_height: A simple single-row, single-height layout
`carousel`	boolean		The `carousel` is a special layout variant designed to show a limited number of items at a time (typically three to five). It emphasises a more organised or featured display, often showcasing highlighted content or key items. Carousels are commonly used for promotions, featured items, or spotlight content. Depending on the client’s navigation style, a carousel may include navigation controls, such as: Arrows: To move to the next or previous items. Dots: To show the number of available items and the current position within the carousel. Carousels are ideal for highlighting specific content, ensuring that the user’s attention is drawn to a select few items within the strip. Notes: The carousel layout is highly flexible, and the navigation controls (arrows, dots) are not defined in this blueprint but should be implemented as needed by the client.
`tile_pattern`	enum selector (duplicates on, re-ordering on)	`16x9,` `4x3,` `2x3,` `3x2,` `4x5,` `1x1,` `3x1,` `4x1`	The `tile_pattern` field defines the layout and aspect ratio of tiles within the rail. This pattern, which may consist of a combination of aspect ratios, is definitive and will NOT repeat across the rail. Duplicate tiles can be specified. 16x9, 4x3, 3x2, 2x3, 4x5, 1x1, 3x1, 4x1: These are fixed aspect ratios for tiles, and will be shown in the order they are selected Examples: Single aspect ratio: 4x3 Result: [4x3] ... Multiple aspect ratios: 4x3, 16x9 Result: [4x3] [16x9] ... Multiple aspect ratios with duplicates: 16x9, 4x1, 16x9 Result: [16x9] [4x1] [16x9] ...
`visible`	boolean		The `visible` setting acts as a simple flag that allows the client to show or hide a rail without removing it from the template or layout. true (default): The rail will be displayed to the user within the layout. false: The rail will be hidden from view but still remains part of the template. It can be toggled back to true later without needing to modify the layout or template structure.

Promotional strip instances

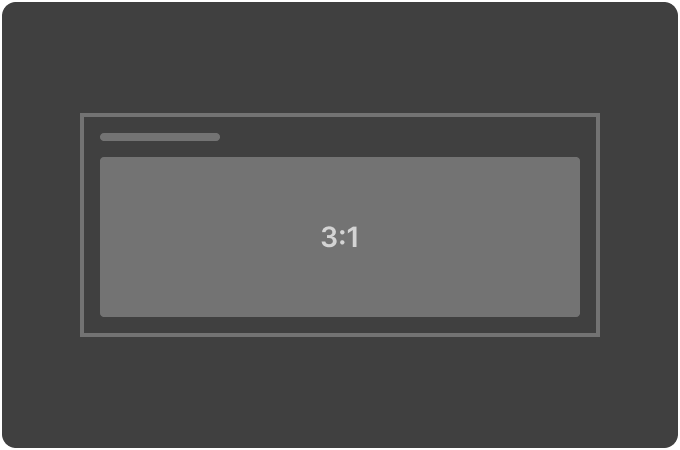

Single Promotion 3:1 Dual Height Row

Appearance	Key	Values
	`type`	`promotional_strip`
	`layout_style`	`dual_height`
	`tile_pattern`	`["3x1"]`
	`visible`	`true`
	`carousel`	`false`

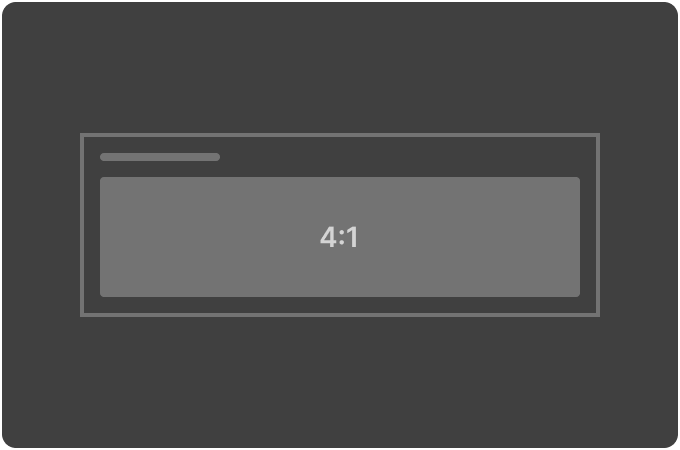

Single Promotion 4:1 Dual Height Row

Appearance	Key	Values
	`type`	`promotional_strip`
	`layout_style`	`dual_height`
	`tile_pattern`	`["4x1"]`
	`visible`	`true`
	`carousel`	`false`

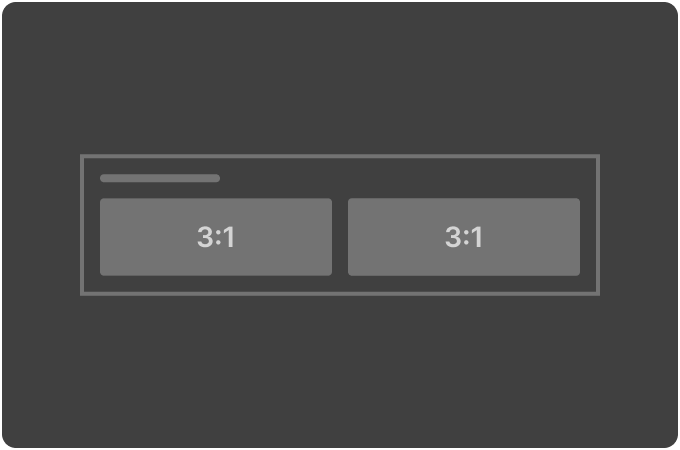

Double Promotion 3:1 Dual Height Row

Appearance	Key	Values
	`type`	`promotional_strip`
	`layout_style`	`dual_height`
	`tile_pattern`	`["3x1","3x1"]`
	`visible`	`true`
	`carousel`	`false`

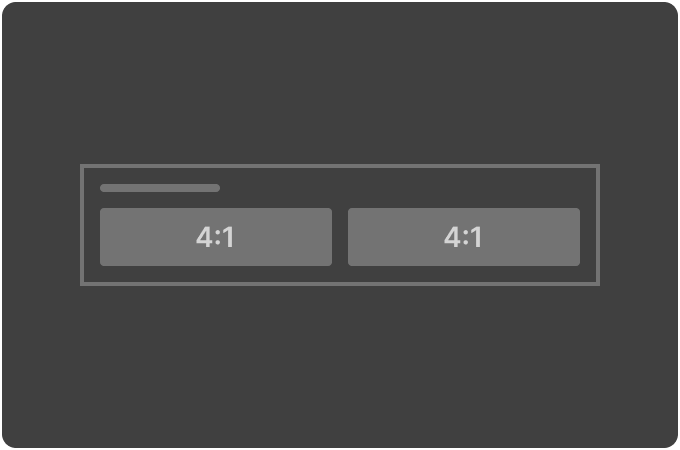

Double Promotion 4:1 Dual Height Row

Appearance	Key	Values
	`type`	`promotional_strip`
	`layout_style`	`dual_height`
	`tile_pattern`	`["4x1","4x1"]`
	`visible`	`true`
	`carousel`	`false`

Triple Promotion 3:1 Dual Height Row

Appearance	Key	Values
	`type`	`promotional_strip`
	`layout_style`	`double_height`
	`tile_pattern`	`["3x1","3x1","3x1"]`
	`visible`	`true`
	`carousel`	`false`

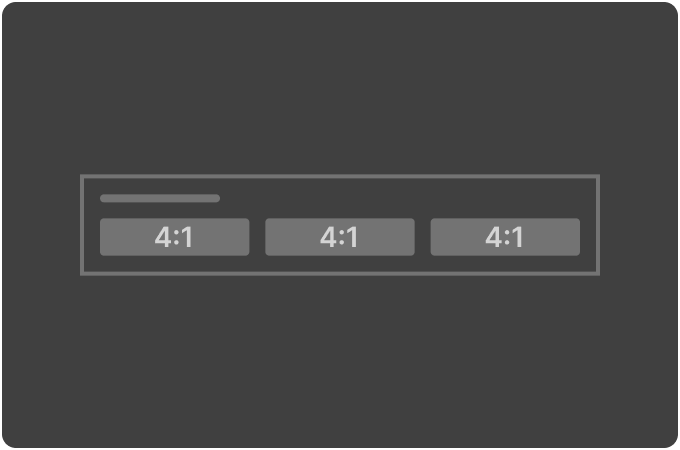

Triple Promotion 4:1 Dual Height Row

Appearance	Key	Values
	`type`	`promotional_strip`
	`layout_style`	`double_height`
	`tile_pattern`	`["4x1","4x1","4x1"]`
	`visible`	`true`
	`carousel`	`false`

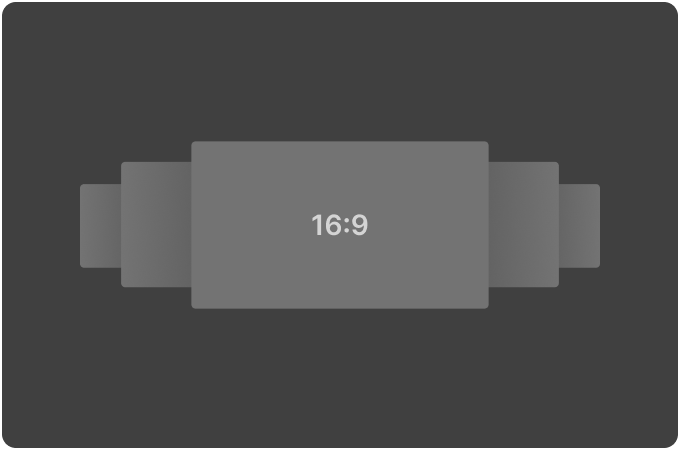

Standard Carousel 16:9

Appearance	Key	Values
	`type`	`promotional_strip`
	`layout_style`	`single_height`
	`tile_pattern`	`["16x9"]`
	`visible`	`true`
	`carousel`	`true`

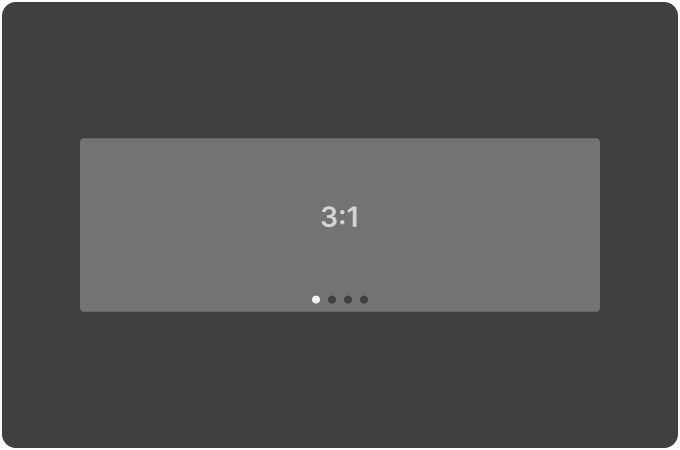

Showcase Carousel 3:1

Appearance	Key	Values
	`type`	`promotional_strip`
	`layout_style`	`single_height`
	`tile_pattern`	`["3x1"]`
	`visible`	`true`
	`carousel`	`true`

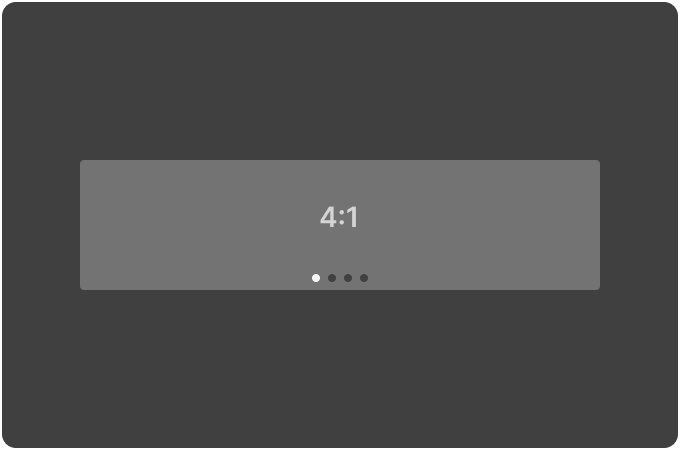

Ultra Showcase Carousel 4:1

Appearance	Key	Values
	`type`	`promotional_strip`
	`layout_style`	`single_height`
	`tile_pattern`	`["4x1"]`
	`visible`	`true`
	`carousel`	`true`
